[Interaction 1] Prototype: Pulsing LEDs

Initial Tryout

I have tried out several LEDs light effects to mimic our heartbeat pulses. Here are some of the experimentations:

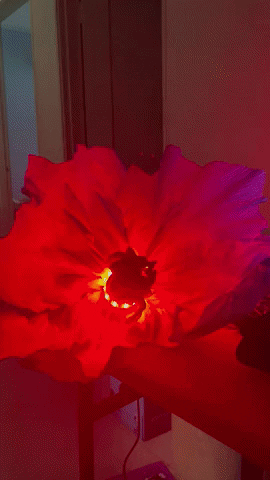

Experimentation 1: The lighting above fades in and out based on brightness.

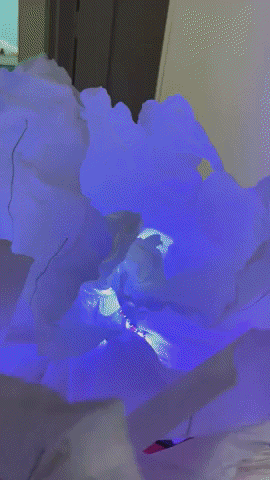

Experimentation 2: Light effect that mimics the heartbeat pulses.

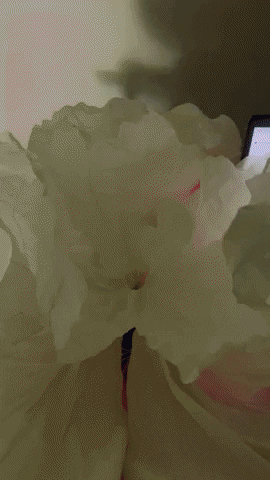

I try it together with different materials such as fabrics and crepe paper to see the effects of it.

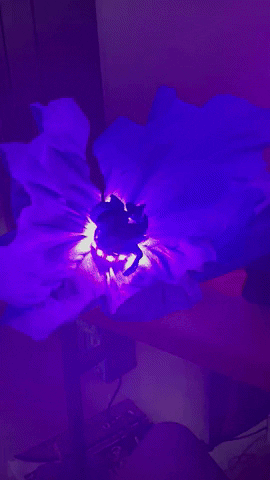

Experimentation 3: Experimentation with the paper combining light effect 1.

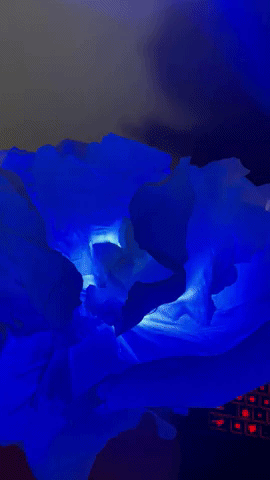

I quite like this effect as it gives me a breathing, relaxing kind of feeling. [Approved]

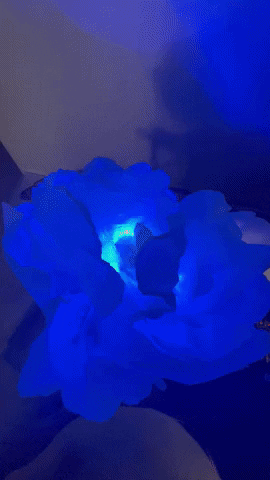

[Rejected]

I also experiment with different hue values, but it turns out to be ugly. Thus, I decided to customize my own color palletes. And also, this is another light effect that uses millis to control the timing but it seems not aesthetically nice.

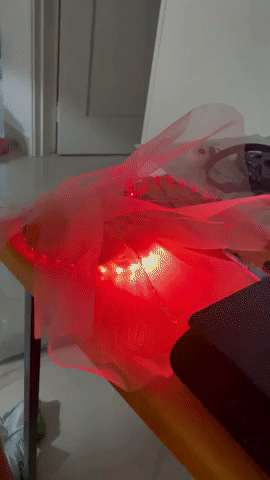

This is a failed experimentation on random colors of the light effect.


Conclusion

Crepe Paper works well with the led lights, this is due to the fabric being too thin to refract the light. Thus, the fabric will only be used as decorations but not the actual interactive flowers.

Color will be randomized by using RGB value instead of mapping the hue value to achieve a better visual outcome.
